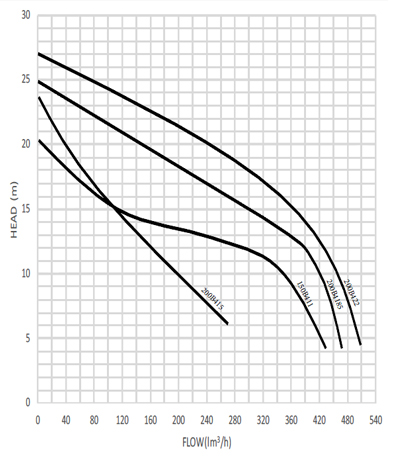

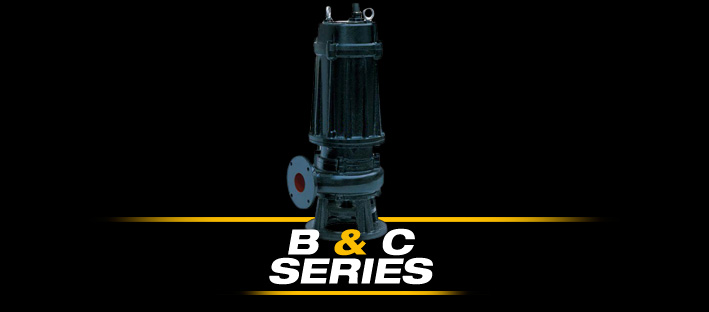

B SERIES
RAW sewage pump
| operating limits |
|---|
| • Cast iron pump construction. |
| • Cast iron impeller construction, open type single channel. |
| • Integrated cutter mechanism located on pump inlet. |
| • Double mechanical shaft seal (silicon carbide-silicon carbide/carbon graphite-ceramic). |
| MODEL | Power | Outlet Dia. | BEP FLOW | BEP HEad |
|---|---|---|---|---|
| 150B411 | 11kW | 150mm | 260m³/h | 24m |
| 200B415 | 15kW | 200mm | 490m³/h | 21m |
| 200B4185 | 18.5kW | 200mm | 550m³/h | 27m |
| 200B422 | 22kW | 200mm | 550m³/h | 27m |

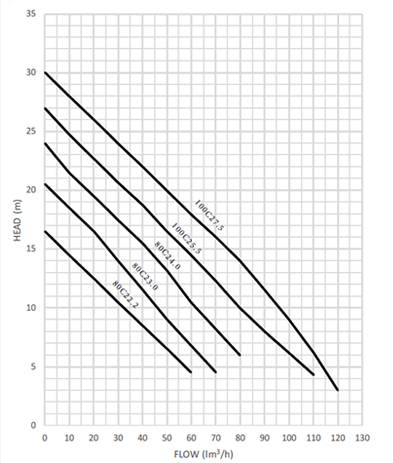

C SERIES
RAW sewage pump
| Operating limits |
|---|
| • Cast iron pump construction. |
| • Cast iron impeller construction, open type single channel. |
| • Integrated cutter mechanism located on pump inlet. |
| • Double mechanical shaft seal (silicon carbide-silicon carbide/carbon graphite-ceramic). |
| MODEL | Power | Outlet Dia. | BEP FLOW | BEP HEad |
|---|---|---|---|---|
| 80C22.2 | 2.2kW | 80mm | 61m³/h | 17m |
| 80C23.0 | 3kW | 80mm | 67m³/h | 21m |
| 80C24.0 | 4kW | 80mm | 79m³/h | 24m |
| 100C25.5 | 5.5kW | 100mm | 107m³/h | 27m |
| 100C27.5 | 7.5kW | 100mm | 120m³/h | 30m |
